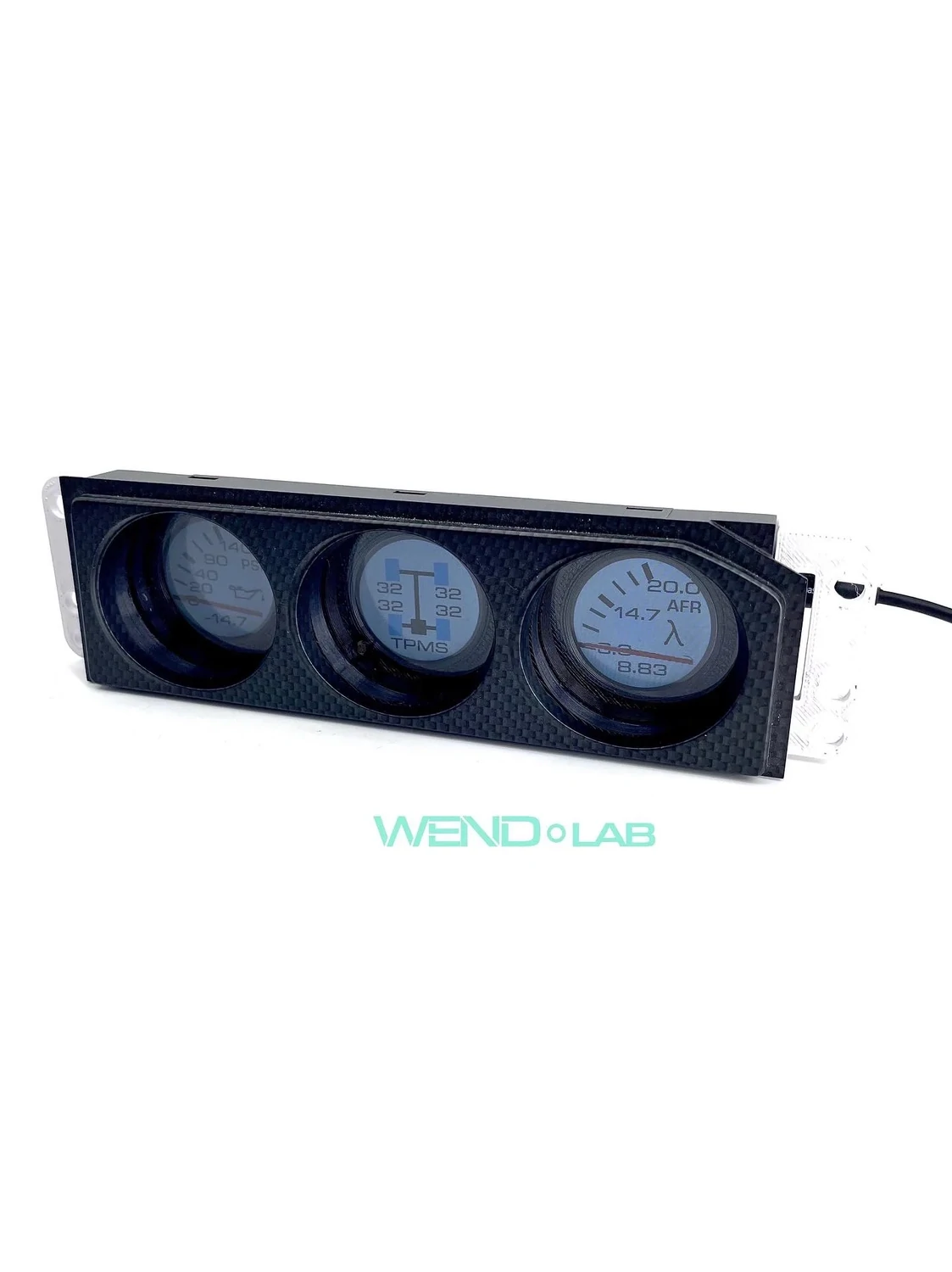

WEND Lab R33 Skyline DIN Triple CANBUS Gauge
Product Details
This CANBUS gauge replaces the factory DIN triple meter in your R33 Skyline with 3 fully configurable gauges.
Take advantage of the CANBUS data stream from your aftermarket ECU.
It is made in the USA with the case 3D-printed in temperature-resistant ASA plastic and purpose-designed electronics.
Features :
- Customisable appearances
- Configurable warning levels
- Configuration via IOS App over Bluetooth (Android Support coming in 2024)
- Auto-dimming displays with night mode
- Single DTM 4 pin connector wiring
- Direct replacement of factory unit -- uses factory bezel
Supported ECUs :
- Haltech (CAN protocol v2)
- Link (G-Series)
- Emtron (KV Series)
Platforms in Development :
- MoTeC 1 Series
- ECUMaster Black Series
Requires a DTM-4 cable for installation
See install instructions for details
Supported gauges
(Requires that your ECU has the appropriate sensors and CAN configuration) :
- Battery Voltage
- Water Temp
- Oil Temp
- Fuel Temp
- Intake Air Temp
- Exhaust Gas Temp
- Water Pressure
- Oil Pressure
- Fuel Pressure
- Boost Pressure
- Air Fuel Ratio
- Ethanol Content
- Injector Duty
- Throttle Position
- Tire Temp/Pressure
- Fuel Tuning (AFR, Fuel Pressure, Injector Duty)
- Engine Health (Oil Temp/Pressure, Water Temp/Pressure, IAT, Voltage, EGT)
- Boost Control (Boost vs. Target, Solenoid Duty, Ethanol %)
- Gear Position
- Speedometer
